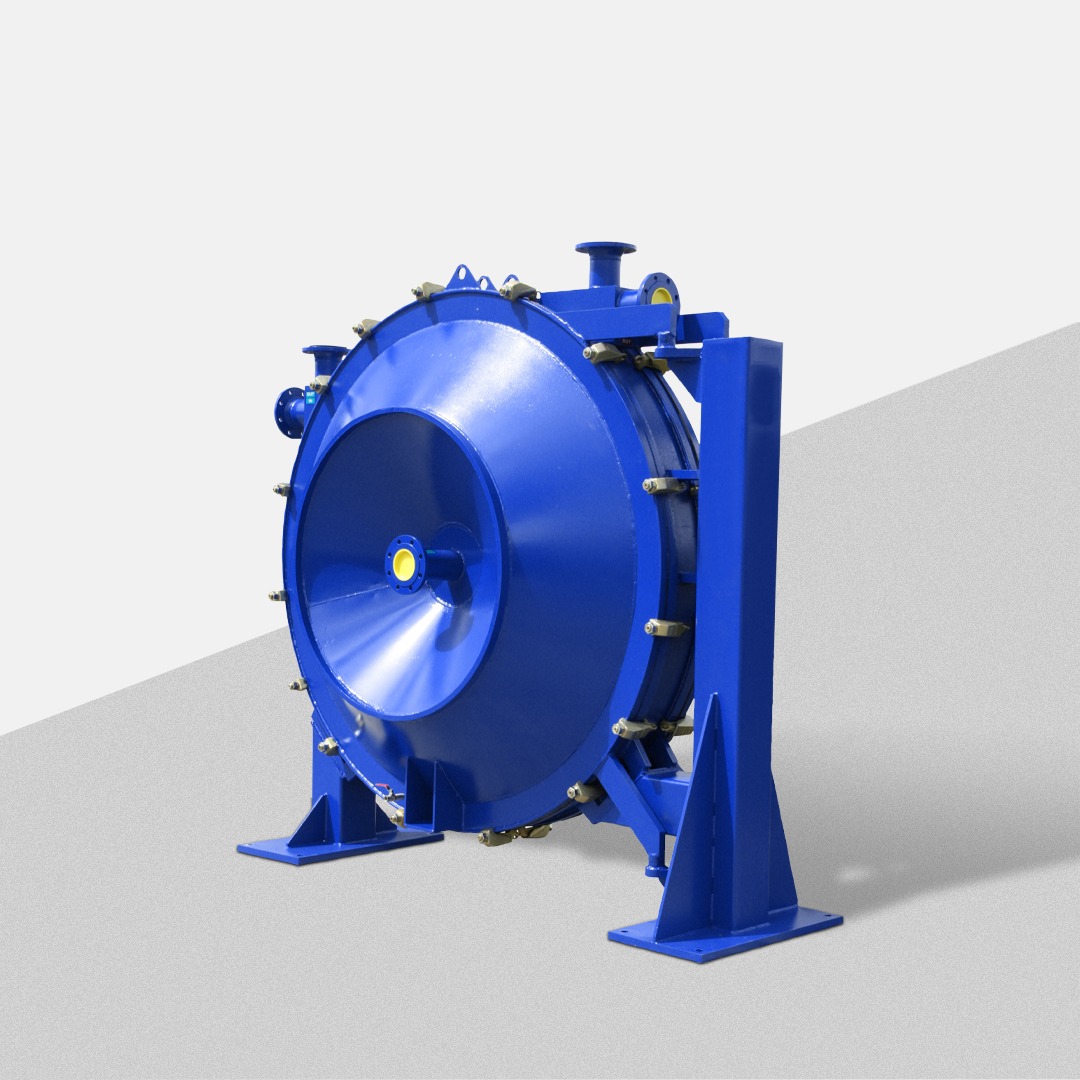

Spiral Heat Exchangers
Tanpera Spiral Heat Exchangers are designed to provide solutions to the heat transfer needs of demanding fluids. It provides reliable and efficient performance in fluids containing dense particles such as sludge, wastewater, paper pulp, high viscosity hydrocarbons and fluids containing fibers.
What is a Spiral Heat Exchanger?
Tanpera Spiral Heat Exchangers are heat exchangers that offer superior durability and performance, especially when plate heat exchangers are not possible to operate. The spiral design offers high efficiency operation with dirty and particulate fluids.
These exchangers ensure free movement of fluids through their channels, while minimizing the risk of clogging. The wide channel design, ranging from 6 to 50 mm, ensures a reliable flow even with fluids containing large particles. With its energy efficiency and durability, it offers a preferred solution in industrial applications.
Features:
- High Efficiency: Excellent heat transfer with high temperature approach due to spiral plate coils built into the core and shell.

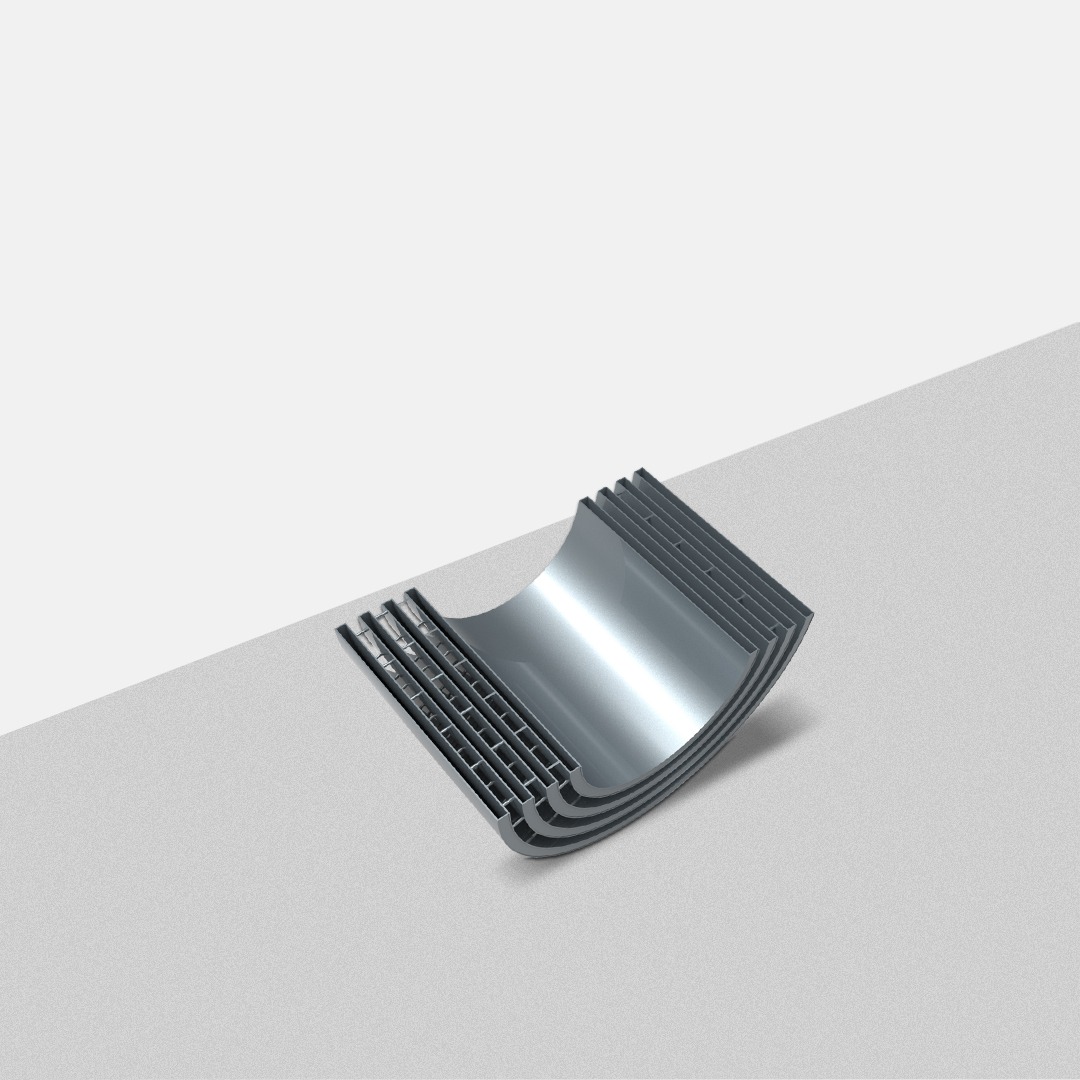

- Channel Design: The channel height through which the dirty fluid passes is between 6 and 50 mm, allowing free movement of particles.
- Resistance to Harsh Conditions: Optimized for industrial effluents and fluids with high contaminant content.
Working Principle

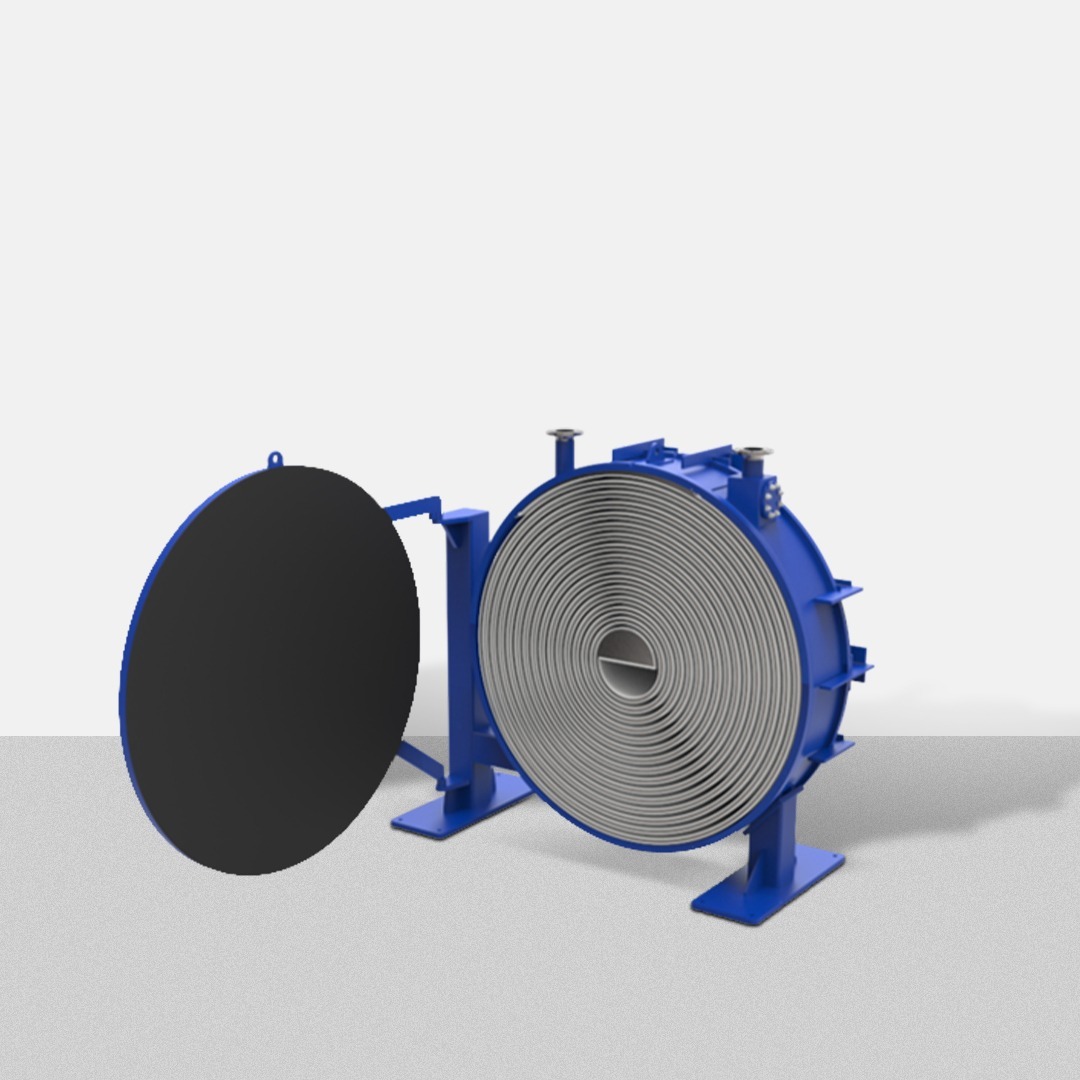

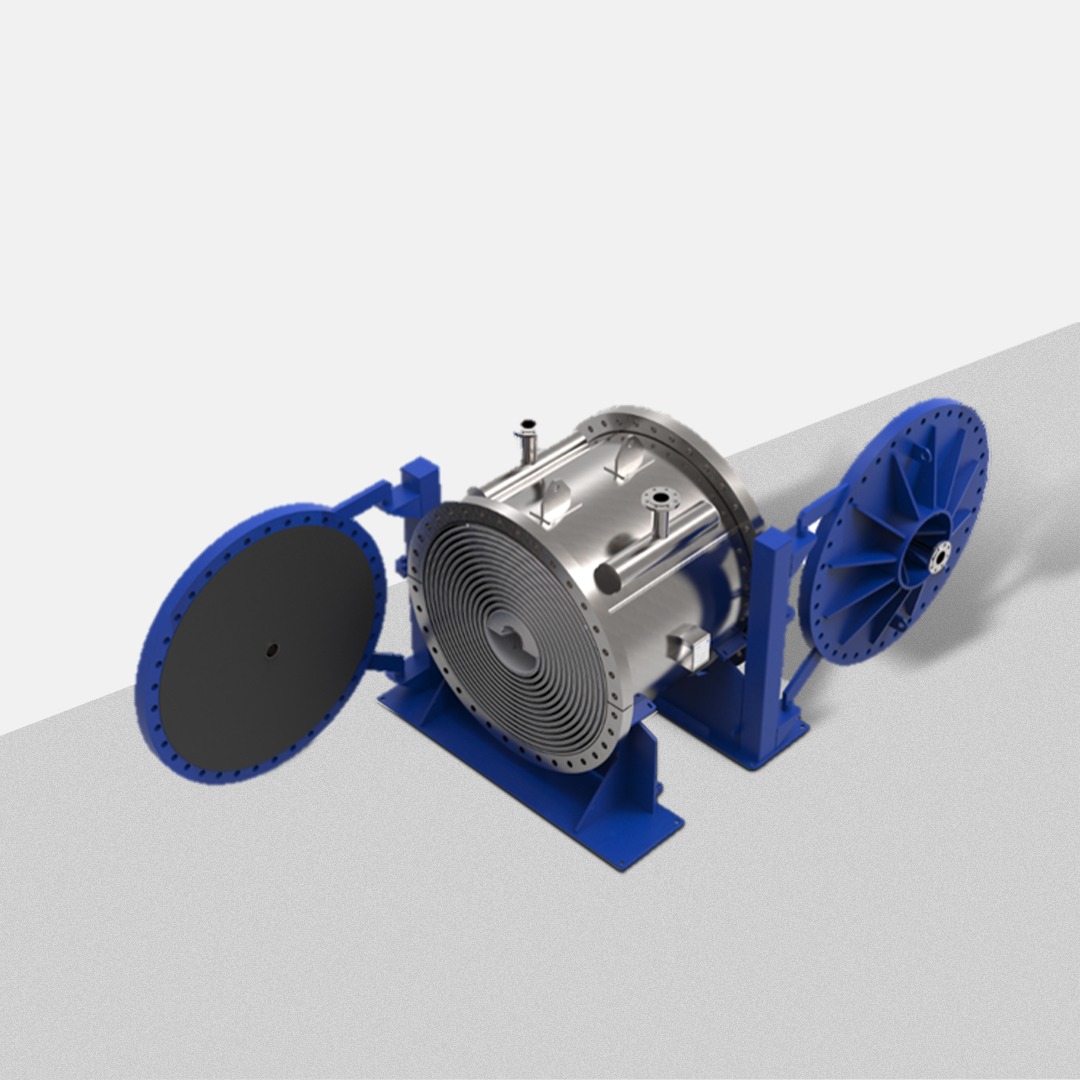

Spiral Heat Exchangers are based on the heat transfer of two fluids circulating along spiral channels.
- Motion of Fluids: The fluids are continuously turbulized by the spiral design. This increases the heat transfer surface area and ensures a more efficient heat exchange.
- Anti-Clogging Design: The wide channel structure allows free movement of dirty fluids with particles. This design reduces the risk of blockages and lowers the maintenance and operating costs of the heat exchanger.
The spiral design not only increases the efficiency of the heat exchanger but also ensures durability under long-term operating conditions.
Advantages
- High Heat Transfer Efficiency: The spiral design increases the turbulence of the fluids, ensuring effective heat transfer.
- Anti-Clogging Channel Design: Wide channels support the free movement of particles, preventing clogging.
- High Durability: Optimized structure against particulate and viscous fluids.
- Energy Efficiency: Low operating costs with maximum energy savings.
- Compact Design: Space-saving compact design for ease of use even in tight spaces.
- Easy Cleaning and Maintenance: The spiral structure enables easy cleaning and maintenance.
- Wide Application Area: Suitable for different sectors such as waste water plants, chemical industry and paper production.
Challenging Fluids Can Now Be Easily Managed with TANPERA!
Tanpera Spiral Heat Exchangers make a difference in the industry in terms of energy efficiency and durability, delivering high performance even in the harshest conditions. Providing the ideal solution for dirty, particulate or viscous fluids, it ensures that your business has a reliable and long-lasting performance.
