Semi-Welded Plate Heat Exchanger

High Performance, Maximum Durability

Semi-welded heat exchangers are special types of heat exchangers used to provide heat transfer and combine the characteristics of both welded and plate heat exchangers. These types of heat exchangers are generally used in industrial applications and in systems requiring high performance.

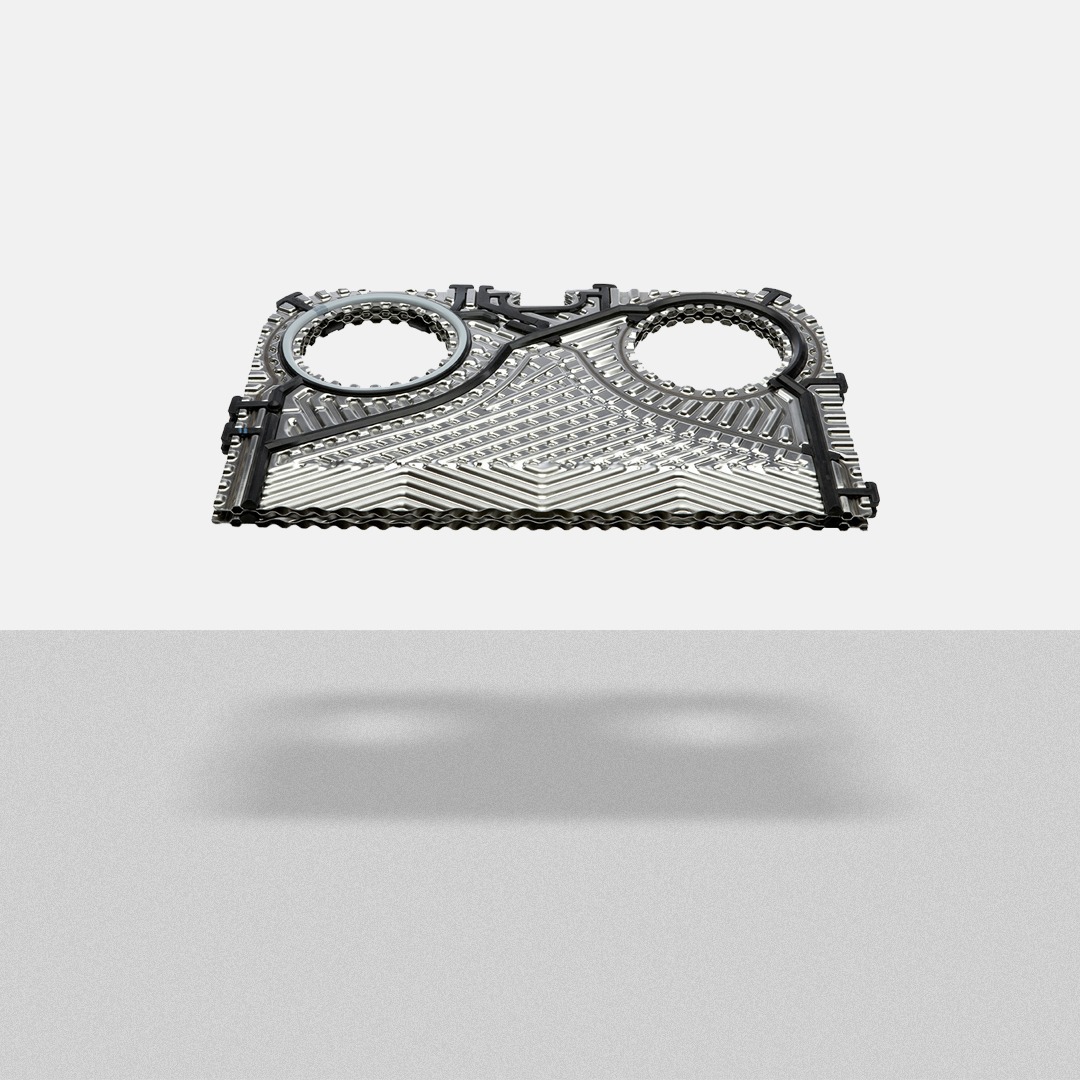

Plate packs are formed by laser welding two separate plates flat on top of each other. This heat exchanger model, which is assembled by placing a gasket between each plate package, provides the advantages of the traditional type plate gasketed heat exchanger and can also be easily used in applications where sealing plays a major role.



Description

What is a Semi-Welded Heat Exchanger?

Semi-welded plate heat exchangers consist of plate packages formed by joining two separate plates by laser welding. This structure provides both resistance to high-pressure fluids and flexible use with gaskets placed between the plates. It combines energy efficiency and safety, especially in industrial plants and systems requiring high performance.

Working Principle

In semi-welded plate heat exchangers, each plate package is formed by laser welding and sealing is ensured. The fluids move in opposite directions between the plate surfaces, realizing maximum heat transfer. Special channels on the plates increase energy efficiency by increasing the turbulence of the fluid. The use of gaskets prevents mixing of fluids and offers easy maintenance and flexibility.

Advantages

  • High Heat Transfer: Effective heat transfer with optimized plate design.
  • High Pressure Resistance: High pressure resistance thanks to laser welded construction.
  • Tightness Assurance: Maximum security with welded plates and gasket design.
  • Corrosion Resistance: Durable materials that can be used in corrosive environments.
  • Compact Design: Space-saving structure suitable for use in limited spaces.
  • Easy Cleaning: Easy maintenance thanks to modular construction and detachable plates.
  • Energy Efficiency: Saves costs by reducing energy consumption.



Technical Specifications

Technical Specifications

  • Pressure Resistance: Up to 40 bar.
  • Temperature Range: -40°C to +180°C.
  • Material: Stainless steel, titanium or nickel alloys.
  • Plate Thickness: Can be customized according to application requirements.
  • Gasket Material: NBR, EPDM or VITON

Product Video

Areas of Use

Application Areas

  • Power Plants: High pressure steam applications and energy recovery systems.
  • Chemical Industry: Heat transfer with corrosive and corrosive fluids.
  • Food Processing: Applications requiring precise temperature control and hygiene.
  • HVAC Systems: Heating, cooling and hot water preparation.
  • Petrochemicals: Processes operating under high temperature and pressure.
  • Marine: Seawater cooling and heat management of ship engines.
